Steam sterilizers | Laboratory autoclaves

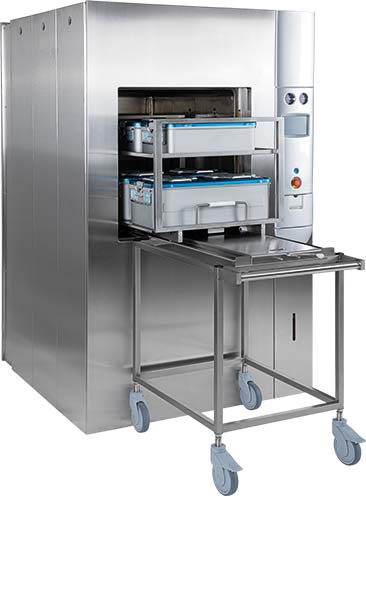

Laboklav Series 66xx
UNIVERSALLY APPLICABLE WITH A CHAMBER VOLUME OF UP TO 897 LITERS.
The LABOKLAV 66xx series comprises universal autoclaves with a wide range of applications that have been specially developed for high volumes of sterilization items in large central sterilization units. The series is available in a one- or two-door version. A flexible media sensor ensures the safe sterilization of liquids by measuring in the reference vessel and complies with the thermal barrier in accordance with IEC 61010.
Laboklav 666, 669, 6612, 6615 and 6618 –
efficient steam sterilization with a chamber volume ranging from 375 to 897 liters

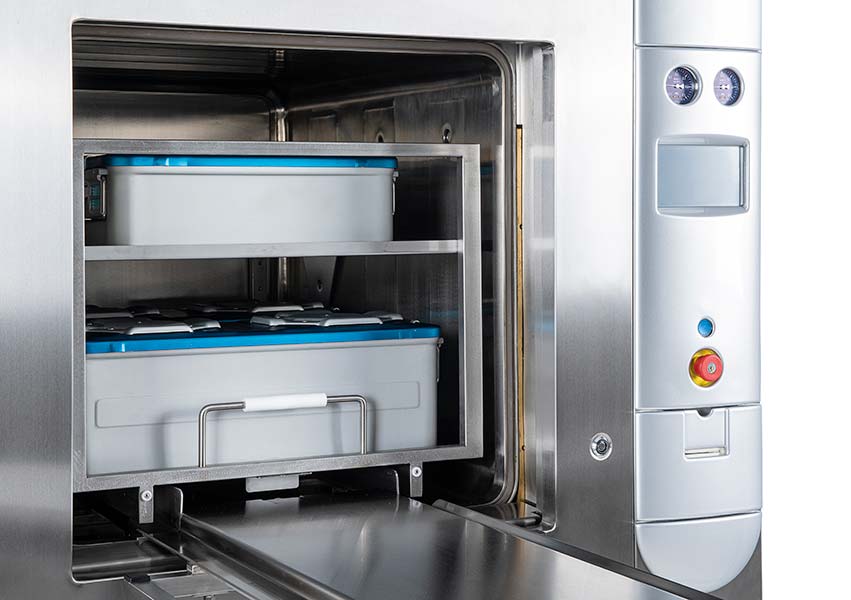

The LABOKLAV Series 66xx stands out not only for its exceptional sterilization performance but also for the innovative design of its chamber, which features a practical, rectangular shape to ensure optimal space utilization and efficient process handling.
Furthermore, all models in the series—except for versions 6615 and 6618—are available both as pass-through models and with a single-door design, allowing for flexible integration into various working environments. Models 6615 and 6618, on the other hand, are available exclusively as pass-through versions to provide particularly convenient loading and unloading. This way, the LABOKLAV 66xx offers the right solution for every requirement.
The LABOKLAV 66xx product series comes standard with a powerful vacuum system, an innovative cooling water-saving system, and a flexible media sensor that ensures precise and safe sterilization of liquids. In addition, a wide range of optional features is available, including rapid cooling, additional support pressure, and exhaust air filtration. These options enable the sterilization processes to be further optimized and flexibly adapted to the specific requirements of your sterilization facility.
Stainless steel
Chamber, heating jacket, sliding door, and housing made entirely of high-quality stainless steel
Sliding doors
with automatic vertical sliding doors
Steam generation
integrated steam generator
Power: 18 + 2.5 kW (external)
2nd monitor
2nd monitor on the unloading side
(Standard for pass-through version)
Touchscreen
7" color display with touchscreen
21 Programs
19 programs + 2 test programs
Laboklav Series 66xx - Designed for a wide range of applications.
Standard features include
Siemens PLC, integrated printer, remote control, VNC viewer (app), vacuum system (V), and cooling water saving system
Accessories

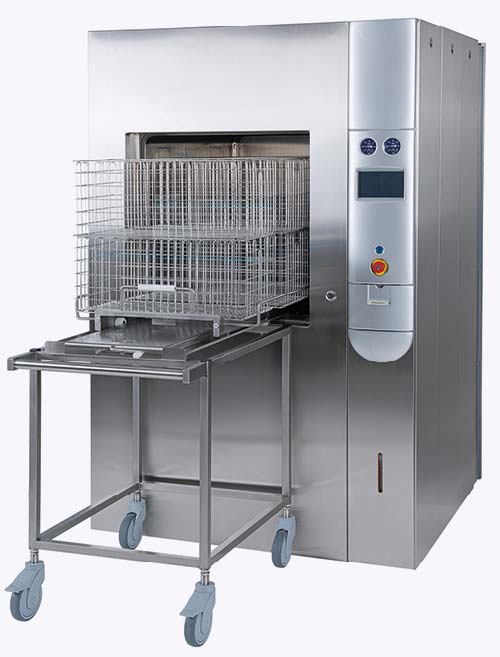

Transport and loading systems, baskets, trays, compressor, software
Piping
The user can choose between two types of piping:
- Copper/brass pipes and valves
- Stainless steel piping with Tri-Clamp fittings (optional)
Housing
The sterilizer housing is made of stainless steel to facilitate maintenance.
Chamber Doors
The chamber doors are made of high-quality stainless steel 316L. A pneumatic drive moves them vertically.
Seal
The sterilizer uses a pneumatically operated seal located in the chamber groove to ensure an airtight closure. Once the door is closed, air pressure is applied to the groove, pressing the seal firmly against the door and sealing the chamber.
Maintenance is quick and easy – the seal can be ejected from the groove at the push of a button. After inserting a new seal, it is pulled back into the groove using the vacuum system, also at the push of a button.
Water Ring Vacuum Pump
The sterilizer is equipped with an efficient water ring vacuum pump that removes air from the chamber. The pump can achieve an ultimate vacuum of -93 kPa (7 kPa absolute). To reduce vibration, it is mounted on anti-vibration pads.
The feed water used during vacuum generation is separated from the air, cooled, and recirculated to the pump to minimize water consumption.
Valves
Pneumatic control valves ensure precise regulation of steam flow into and out of the chamber.
Validation Ports
The sterilization chamber is equipped with two measurement ports:
- Connection for a pressure gauge (pipe thread ISO 228-G1/2 "A)
- Connection for a temperature sensor (pipe thread ISO 228-G1 "A)
LCD Touchscreen
The sterilizer features a clearly readable 7" LCD touchscreen with an intuitive and user-friendly interface.
Air Intake Filter
For cycles with vacuum drying, ambient air is introduced. An integrated sterile air filter ensures this air is sterile – removing 99.999% of particles sized 0.3 µm or larger.
Steam Interlock Door Switch
Prevents steam from entering the chamber when the door is not securely closed.
Safety Valves
Safety valves are an important safety feature in pressure equipment. Their primary function is to protect life and property in the event of an overpressure incident. For this reason, LABOKLAV 66xx sterilizers are equipped with three safety valves connected to the following components:
- Pressure vessel of the steam generator
- Sterilization chamber
- Door sealing system
Emergency Stop
The emergency stop switches are located on the loading and unloading sides (for double-door versions). They serve two functions:
- Immediate stop of a moving door (either opening or closing) and activation of an alarm
- Interruption of an ongoing sterilization process, closing of all valves supplying the chamber with media, and shutdown of the steam generator heaters (for sterilizers with integrated steam generator)
Safety Bar
Each door is equipped with a safety bar located at the top of the door. This prevents injuries to personnel and damage to products when the door is in motion.
Water Level Sensors in the Steam Generator
The steam generator is equipped with two water level sensors:
- Upper sensor – helps maintain a constant water level
- Lower sensor – switches off the heaters when the water level drops below a defined safe minimum
Pressure Monitoring
Two analog pressure gauges, located on the upper front of the device, display the current pressure in the chamber and in the steam generator.
Steam Condensate and Cooling
To ensure safe disposal of condensate, it is cooled to below 60°C before being discharged. This also ensures that the drainage pipes are not damaged by heat.
Thermal Protection of the Steam Generator
Sterilizers with an integrated steam generator have additional overheating protection. A temperature limiter shuts off the heaters if the boiler body temperature exceeds safe limits.
Optional for the Laboklav 66xx series steam sterilizers
Option M: Rapid Cooling
(with integrated rapid cooling system)
A powerful rapid cooling system for liquid sterilization significantly reduces cycle times and enables multiple sterilization cycles per working day.
Option S: Counter Pressure
(for open vessels)
only in connection with Option M
When the cooling system is expanded with the support counter pressure option, liquids in open containers can be sterilized without loss, further reducing the cycle time.
Exhaust air filtration – to protect the user and the environment
An exhaust filter system protects users and the environment from harmful germs that may be released during chamber ventilation, enabling the use of the autoclave in laboratories starting from biosafety level 2.
Air Detector
In autoclaves or sterilizers, an air detector is used to identify air bubbles or accumulations that could interfere with the sterilization process.
Bio Barrier
A Bio Barrier is a protective barrier designed to securely separate clean and unclean areas.
Stainless Steel Piping / Triclamp
The stainless steel piping offers corrosion resistance, hygiene, easy cleaning, and durability, making it the preferred choice. It is also available in a version with stainless steel valves and Triclamp fittings.
Technical Data
Laboklav 66xx steam sterilizers comply with all the required standards and guidelines listed below:
- 2014/68/EU: Pressure Equipment Directive
- EN 61010-1:2010: Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
- EN 61010-2-040:2015: Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 2
- EN 61326-1:2013: Electrical equipment for measurement, control, and laboratory use - EMC requirements - Part 1: General requirements
All of our service staff are "Qualified Persons according to the Pressure Equipment Directive".
CUSTOMER SERVICE is a top priority for us.
Our service network ensures short response times and competent service technicians with many years of experience in steam sterilization. Our fair prices and the service-friendly design of our devices keep costs low. We take care of your equipment.
Each appliance is equipped with a vacuum system (V), a cooling water saving system (K) and a flexible reference sensor (R) as standard.
Exhaust air filtration (FA) is available as an option.
